Fuse replacement

Last updated 23 December 1999

the fuse The QuickTake 200 and DS-7 are remarkably reliable cameras, especially compared to more recent (and more complex) models—but occasionally things can go wrong. The single most common problem with these cameras is a blown fuse that prevents you from using an external power supply. The camera will still work fine on its internal batteries, but anything plugged into the "DC IN" jack is simply ignored. This most often happens when the camera has been plugged into an external supply while it is turned on.

Fortunately, Ray Gannon has found a source for the fuse and provided these photos showing where it is and how to replace it. The item in question is a Littelfuse (yes, that is the correct spelling!) Nano series 125V 1.5A fuse. You can get these from Digi-Key pretty cheaply—though you may have to buy a ten-pack (Digi-Key part number F1144CT-ND, $10.60 plus shipping), it's still worth it to get your camera working again!

WARNING: Unless you're a skilled electronics technician with the right tools, you are likely to damage your camera while trying to replace this fuse. (Needless to say, opening up the camera will also void your warranty.) In short, don't attempt this unless you know what you're doing and are prepared to risk the possible consequences.

If you have any doubts about your ability to tackle this job yourself, there is an alternative: print out both this page and the Disassembly page and take the printouts (along with your camera) to any local radio/TV repair shop. They will have no problem replacing the fuse for you, and it shouldn't be too expensive if you give them this information.

See the Disassembly page for instructions on how to take the camera apart. Once you've done that, you can see the culprit:

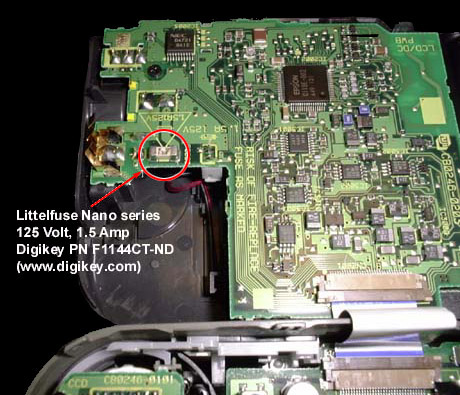

Closeup of fuse

This is a surface-mount device, so the usual precautions apply: use a low-wattage, temperature-controlled soldering iron, rosin-core (not acid-core!) solder and a light touch—don't heat the circuit board or components any more than you have to.


Return to QuickTake 200 page Return to the QuickTake 200/Fuji DS-7 Users' Page

If you have tips or suggestions about either of these two cameras, or if you've found any accessories I haven't mentioned here, send email to Andy Baird so I can put the information on this page.
